This tutorial walks you through building a small web app in TypeScript that will:

Fetch DOGGOTOTHEMOON (“BTC-840000:3”) candlestick data from Maestro’s Market Price API.
Render it as an interactive candlestick chart using the TradingView lightweight-charts library.

Overview

TradingView - Lightweight Charts™

TradingView is a popular web-based platform renowned for its comprehensive and user-friendly charting tools. Users can access a variety of charts for different financial instruments, like stocks, cryptocurrencies, forex, and futures. These charts can be customized with numerous technical indicators and drawing tools to analyze market trends and patterns. TradingView’s Lightweight Charts is a compact, interactive library designed to create financial charts that are both fast and easy to integrate. Here’s a basic guide on how to use it with the Maestro Market Price API.

Prerequisites

Node.js ≥14 and npm (or Yarn) installed
A Maestro API key
Basic familiarity with TypeScript, fetch, and bundling (e.g. with esbuild, webpack, or Vite)

Step-by-Step Instructions

1. Bootstrap a New Project

Bash

# create & enter project folder
mkdir maestro-chart-tutorial && cd maestro-chart-tutorial

# initialize npm
npm init -y

# install runtime and dev dependencies
npm install --save lightweight-charts
npm install --save-dev typescript esbuild live-server

Here’s what your initial package.json should look like:

JSON

{
  "dependencies": {
    "lightweight-charts": "^5.0.6"
  },
  "name": "maestro-chart-tutorial",
  "version": "1.0.0",
  "description": "",
  "main": "index.js",
  "scripts": {
    "test": "echo \"Error: no test specified\" && exit 1",
  },
  "keywords": [],
  "author": "",
  "license": "ISC",
  "type": "commonjs",
  "devDependencies": {
    "esbuild": "^0.25.3",
    "live-server": "^1.2.2",
    "typescript": "^5.8.3",
  }
}

Next, create a minimal tsconfig.json:

JSON

{
  "compilerOptions": {
    "target": "es2017",
    "module": "esnext",
    "moduleResolution": "node",
    "strict": true,
    "outDir": "dist"
  },
  "include": ["src/**/*"]
}

2. Project Structure

Text

maestro-chart-tutorial/
├── package.json
├── src/
│   ├── main.ts      ← chart logic
│   └── index.html   ← HTML container for the chart
└── tsconfig.json

3. Write the HTML Shell

Create src/index.html:

HTML

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8" />
  <title>DOGGOTOTHEMOON Candlestick Chart</title>
  <style>
    /* Full‑viewport chart */
    #chart {
      width: 100%;
      height: 500px;
    }
  </style>
</head>
<body>
  <div id="chart"></div>
  <!-- Bundled script -->
  <script type="module" src="main.js"></script>
</body>
</html>

4. Fetch & Transform Candle Data

Create src/main.ts:

Text

import {
  createChart,
  CandlestickSeries,
} from 'lightweight-charts';

// ─── Configuration ─────────────────────────────────────────────────────────────
const API_BASE = 'https://xbt-mainnet.gomaestro-api.org/v0/markets';
const DEX        = 'magiceden';
const SYMBOL     = 'BTC-840000:3'; // DOGGOTOTHEMOON
const RESOLUTION = '1d';            // 1‑day candles
const API_KEY    = 'YOUR_API_KEY_HERE'; // ← Replace with your API key

interface Candle {
  bucket: string;
  open: number;
  high: number;
  low: number;
  close: number;
  volume: number;
  symbol: string;
}

async function fetchCandles(mempool?: boolean) {
  const url = new URL(`${API_BASE}/dexs/ohlc/${DEX}/${SYMBOL}`);
  url.searchParams.set('resolution', RESOLUTION);

  // for Mempool Market Price data
  if (mempool) {
    url.searchParams.set('mempool', 'included');
  }

  const resp = await fetch(url.toString(), {
    headers: {
      'api-key': API_KEY,
    },
  });

  if (!resp.ok) {
    throw new Error(`API error: ${resp.status} ${resp.statusText}`);
  }

  const json = await resp.json();
  const candles = json.data as Candle[];

  return candles.map(c => ({
    time: Math.floor(new Date(c.bucket).getTime() / 1000) as UTCTimestamp,
    open: c.open,
    high: c.high,
    low: c.low,
    close: c.close,
  }));
}

5. Initialize & Draw the Chart

Append to src/main.ts:

Text

async function drawChart() {
  // Create chart
  const chartOptions = {
    layout: {
          textColor: 'black',
          background: { type: 'solid', color: '#ffffff' },
    },
    grid: {
      vertLines: { color: '#eee' },
      horzLines: { color: '#eee' },
    },
    rightPriceScale: { borderVisible: false },
    timeScale: { borderVisible: false, timeVisible: true },
  }

  const chart = createChart(document.getElementById('chart'), chartOptions);

  const series = chart.addSeries(CandlestickSeries, {
      upColor: '#26a69a',
      downColor: '#ef5350',
      borderVisible: false,
      wickUpColor: '#26a69a',
      wickDownColor: '#ef5350',
  });

  // Load data & render
  try {
    // Fetch candlestick data
    const candles = await fetchCandles();
    // Set candlestick data
    series.setData(candles);
    // Format for better readability
    chart.timeScale().fitContent();
  } catch (err) {
    console.error(err);
    alert('Failed to load candle data; see console.');
  }
}

// Run
drawChart();

6. Bundle & Serve

Add these scripts to package.json:

JSON

{
  "scripts": {
    "build": "esbuild src/main.ts --bundle --outfile=src/main.js --platform=browser",
    "start": "npm run build && live-server src"
  }
}

Then:

Bash

npm run start

esbuild bundles your code into main.js.
live-server serves src/index.html at http://127.0.0.1:8080.

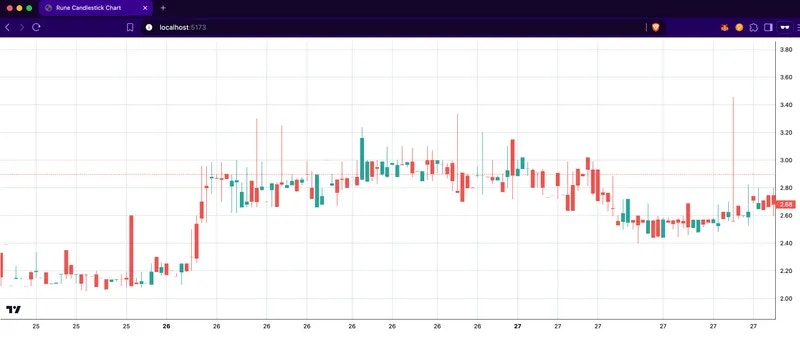

Interactive TradingView Chart

If you’re able to see a chart like this displayed in your browser, then you have successfully fetched data through the API and rendered the chart.

7. Next Steps & Customization

The following considerations can help you to extend this tutorial to fit more of your application’s needs.

You can make the chart data mempool-aware- meaning it returns data about trades that have not yet been confirmed- by passing in an optional boolean value to fetchCandles(), such as const candles = await fetchCandles(true);
Time Range: add from/to (Unix seconds) to fetchCandles()
Carry: url.searchParams.set('carry','true') fills gaps with synthetic candles
Styling: tweak createChart options
Interactivity: add crosshair, tooltips, mouse events

🎉 You’re Done!

You now have a live candlestick chart of DOGGOTOTHEMOON using Maestro’s Market Price API with the TradingView lightweight-charts library. Customize it further with indicators, multi‑symbol support, or integrate it into your DeFi dashboard. Be sure to review Maestro’s rate limits and pricing tiers to select the plan that best fits your application’s needs.

SupportIf you are experiencing any trouble with the above, reach out on Discord.
